Subject: Quick Fingerboard FAQ

Date: 6/18/99

------------------------------------------------------------------------

Many people have asked me "How do those NEW fingerboards work?" and "How

do I convert my board to run in a JAMMA cabinet?" Here is a quick FAQ to

show you:



1. Take the Fingerboard and Edge connector (key side is JAMMA)





2. Solder the Edge connector to the Fingerboard.





3. Connect jumper wires from Edge connector side to JAMMA side (use pinouts)





4. Insert JAMMA side into JAMMA harness and board into Edge Connector.

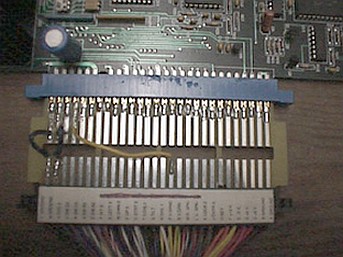

The result is a VERY compact, sturdy, and EASY to build JAMMA adapter,

without the muss and fuss. The holes in the fingerboard are so that you

can wire from one side to the other easily.



Thanks!
